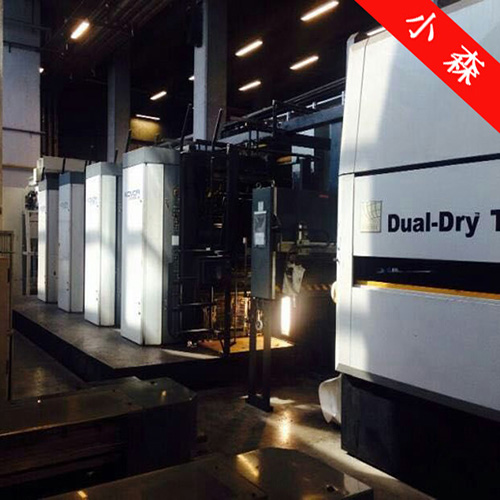

1 KOMORI S 38 - 32 Pages
Year: 2009
Cut-off: 625 mm
Cylinder circumference: 1250 mm
Web-Width: 965 mm
Production Speed: 39000 rev./hour
Web direction: left to right
Paper thickness: 50 gr./m² to 120 gr./m²
SPECIFICATION: 1 MEGTEC DLC automatic Reel splicer
1 Infeed Unit wit integrated web guide
5 KOMORI S 38 Double Printing Units
KOMORI Matic dampening
TECHNOTRANS Refrigeration Unit
automatic Blanket washing device
KOMORI KHS AL H control system
1 MEGTEC Hot Air Dryer TNV 13.5 Meter
integrated After burner
1 Chill Unit with 6 Chill Rollers
Chill roller washing device on 1st. chill roller
1 QI Color Register control
1 OI Cut-Off control
1 KOMORI Folder Superstructure
Two slitters for 3 ribbons
Two sets of angle bars
1 PLANATOL COMBIJET 8 MOD Gluing Unit
1 WEKO Sylicon applicator
1 KOMORI Combination Folder DC 38
automatic motorized adjustment
DELTA Fold
Double Parallel Fold
QI folding control
2 Deliveries for A/3
